ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Assembling ZVA

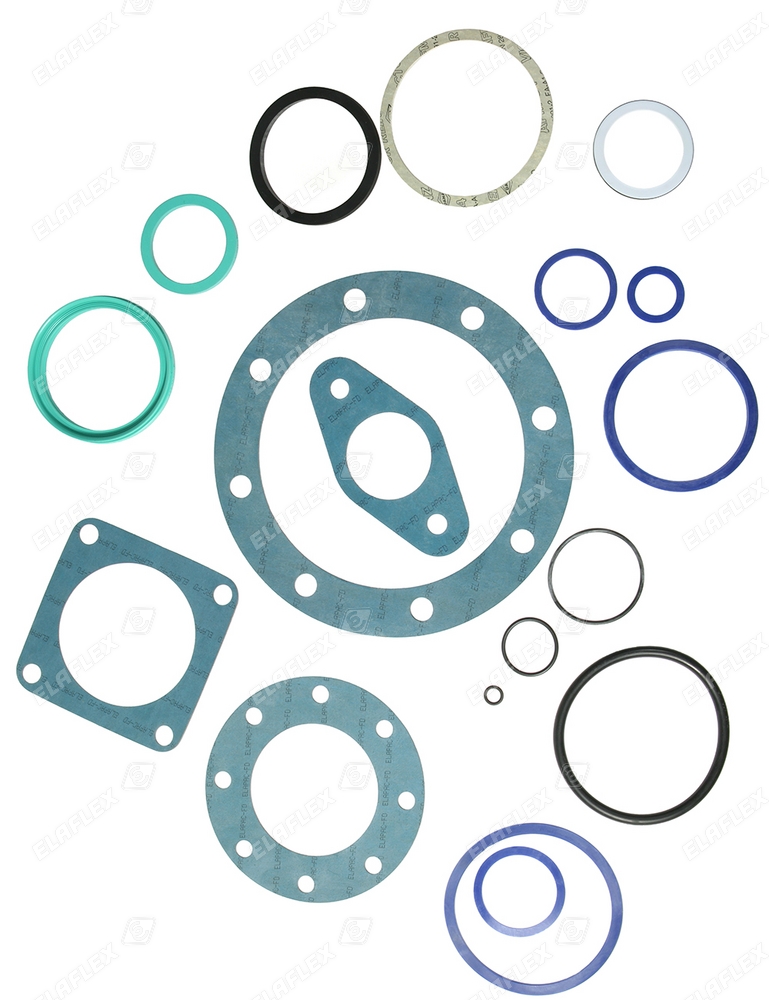

ELAPAC FD flat sealing material

2 or 3 mm thickness, available as coil, standard size seal or in custom shape. An elastic flange seal for tank truck and tank plant construction etc., where rough sealing surfaces require a high adaptability, where flange seals should still have good flexibility to avoid pipe fractures or simple sealing materials because little or no force can be used to tighten the joint.

Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot

ElaSil® Silicone hose assemblies DN 13-102

For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection

UTS hose assembly with AMKC 32 SS and AVKC 32 SS

'Camlock' stainless steel female and male coupling to EN 14420 - 7 with hose tail and Spannloc clamps

Assembling "ZS" tie rods to ERV rubber expansion joints

ERV-GR 250.10 SS TA

Green Band Rubber Expansion Joint with PTFE lining

Slimline 21 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Elaflex Cam and Groove Couplings ('Camlock'): AMKX 50 EASY

EASYLOC stainless steel coupler to EN 14420 - 7, with lever arrest. Picture shows the version as one-piece coupler with integrated hose tail and Spannfix stainless steel clamp

AMB 50 SS

'Camlock' stainless steel dust cap to EN 14420 - 7 for male adapters AVK with captive seal

GasGuard GG11R

The GasGuard GG11 Back-Check Valve (GG11R: with additional release screw) should be standard equipment for any LPGas road tanker operator. It is used in conjunction with LPGas bulk refueling nozzles to contain leaks at storage tank fill points. If the fill point proves to be leaking when removing the nozzle it can be left on the tank until corrective action is taken. The driver can move to the next fill point without delay.

Vehicle refuelling with LPG (L.P. Gas, Autogas)

GasGuard GG30 BAYO nozzle with Bayonet connector and optional splashguard

Offshore FSRU (Floating Regasification Unit), Unloading Gasoil Sludge

TW hose assemblies, reels

Petrol station in Singapore

ZVA Slimline 2 nozzle, SSB 16 Safety Break, Slimline hose assembly

L.P. Gas road tanker: long hose reel, LPG 32 and LPG 25 hose assemblies

ERV-G ... TW

Aircraft refueller

ELAFLEX Hamburg

Assembling ERV medium DN

Oasis BV706, 3/4" pneumatically actuated ball valve for CNG

Flexible bronze pipe connector BWO

Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps

EA 866 scuffguard orange with ZVG 2 ACME nozzle

The scuffguard for LPG / Autogas nozzles shows the LPG fuel grade marking required by standard, and offers a large advertising space

VC 65-21/2" SS / SS

Spannloc threaded hose coupling with BSP male thread / Spannloc of stainless steel

ELAFLEX Hamburg

Hose assemblies pressure testing (hydrostatic test)

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 ACME nozzle, LPG 16 hose

Camlock hose couplings: system comparison

Easyloc from Elaflex with automatically secured levers.

Oasis 'Priority Panel' with ball valves for CNG bus refuelling

ELAFLEX quality: section view of a ERV bellows

ELAFLEX refuelling equipment for AdBlue® urea solution

Ship bunkering loading and unloading, Hose Reels, HD hose, ZV 500

Bunkerboat

ERV-R ... ZS

"Red Band" Rubber Expansion Joints with limiters

RMC 25 SS

Hose coupling with female foodstuff thread and Spannloc clamps
