Cabinet of road tanker:
MK 80 with VB 80 ADR SS (plug with pressure relief)
V 19-1"
Male ferrule hose coupling EN 14424, reusable. Slimline 19 hose, black.
ELAPHARM Type EPH 25
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
ELAFLEX Hamburg
Assembling ERV large DN
ERV-GS; ERV-G
Rubber Expansion Joints - use in ship engine room

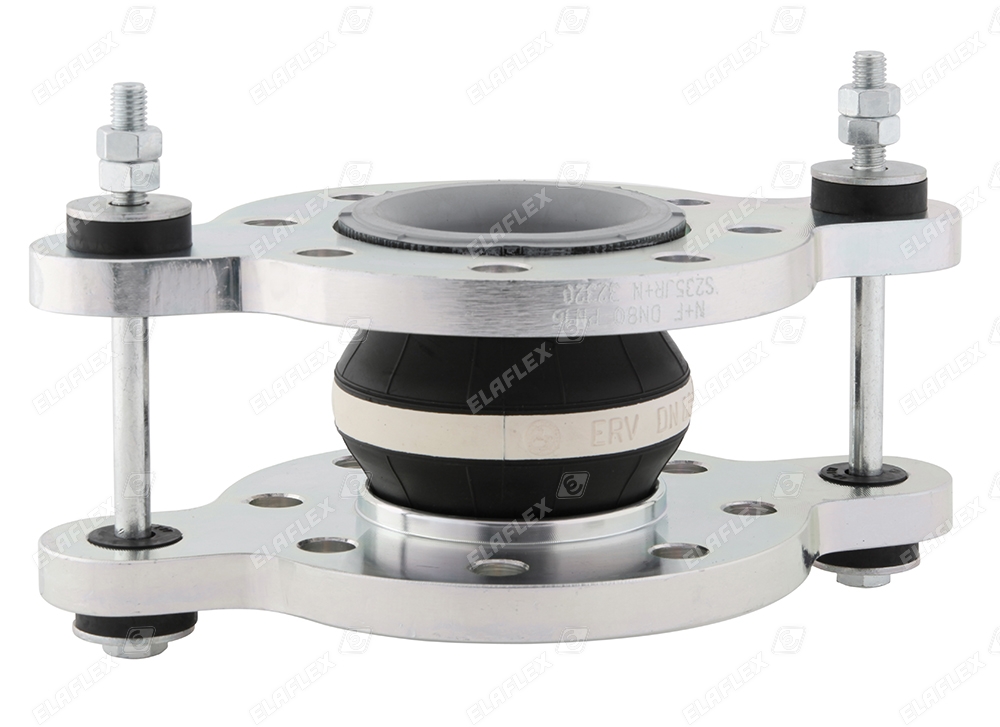

Rubber Expansion Joint ERV-R 80.16
RED BAND expansion joints for water, drinking water (approvalDVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature (depending on medium) - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.
Motorcycle refuelling at the petrol station
ZVA Slimline 2 GR with special short spout
DGC-V 50 F SS for L.P. Gas, PN 25/40
Dry Disconnect Coupling with flange connection, DN 50, stainless steel, with rubber dust cap
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose
Urea solution filling for light vehicles – parallel to Diesel refuelling
ZVA LV for AdBlue® / ZVA Slimline 2
SPANNFIX pinned safety clamps of stainless steel
SX 75 NR SS
ZVG 2 ACME / EURO / DISH
Nozzles for L.P. Gas (Autogas) refuelling
GasGuard LPG / Autogas refuelling equipment
Nozzles, nozzle boot for dispenser installation, LPG 16 hose assemblies, Safety Break ARK 19
Type PCS, Polypal Clean
one side with RMC foodstuff fitting / Spannloc clamps stainless steel, other side open (note the inner conductive stripe)
Oasis Engineering Ltd, New Zealand (CNG refuelling products)
Testing
HB hot bitumen hose - loading plant
Slimline hose assembly, section view
Coax hose assembly, section view
RN 2 x 3 SS
Reducing nipple
Cargo loading / unloading of ship, STW 150, Vapour Line
Italy
ELAFLEX Hamburg
ERV pressure testing
Hose Beads
BD 50, BD 63
Underwing refuelling A 380
Accessories and spare parts: Ground cable assembly, dust cap assemblies, spouts, strainer
ER 339, ER 494, ER 495, ER 587 JET PTL, EKG 1200, GKG 19, GKG 32, GKG 38-J, ES336.1
SPANNFIX pinned Sicherheits Klemmbacken aus stainless steel
SX 75 SS
VB 100 SSE
TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
Road tanker with large hose reel, HD hose assembly, ZV 500 nozzle
Camlock hose couplings: system comparison
right hand side - industry standard, with cable tighteners to fix levers. Left hand side: Easyloc from Elaflex with automatically secured levers.
Lube Flow Modul for IBC loading/unloading
FWS 50 PP, DDC-M 50, HD 50, ZV 400, ERV-G 50 Special Type
